Newest Gravel Bike For Toray Full Carbon Fiber Gravel Bike Frame GR029 Bicycle Metallic red color
Category: Customized paint   Publish Time: 2020-08-26 20:39

Newest Gravel Bike For Toray Full Carbon Fiber Gravel Bike Frame GR029 Bicycle Metallic red color
accept custom paint

Notice:  if you come from european countries . like : spain , italy , germany . belgium , austria etc .  we can shipping by DPD . 100% have not customs duty




Item: GR029

Size:49cm 52cm 54cm 56cm 58cm

Bottom Bracket: BSA (68mm)

Weave:UD-Raw/Matte/Glossy/Black Matte/Black Glossy

Finished:To order-Customized paint&Logo decal

Material:Hight Modulus Toray t700 Carbon Fiber

Head Tube: 1-1/8” to 1-1/2” Tapered Integrated

Seat Tube: 27.2mm Diameter Seatpost

Frame Rear Space: 142*12mm Thru-axle

Fork spacer : 100*12mm or 100*15mm Thru-axle

Groupset: Di2 and Mechanical Compatible

Brake Type: Flat Mount Gravel Disc Brake

Weight: Frame 985+/-15g (52cm), Fork 399+/-15g

Disc Rotor: Front and Rear 140mm, if 160mm need add adaptor

Chain Stay: 425mm

Fork Rake: 45mm

Cable Type: Internal cable

Max Tire: 700X42C

Warranty: 2 years




GR029-geometry carbon frame

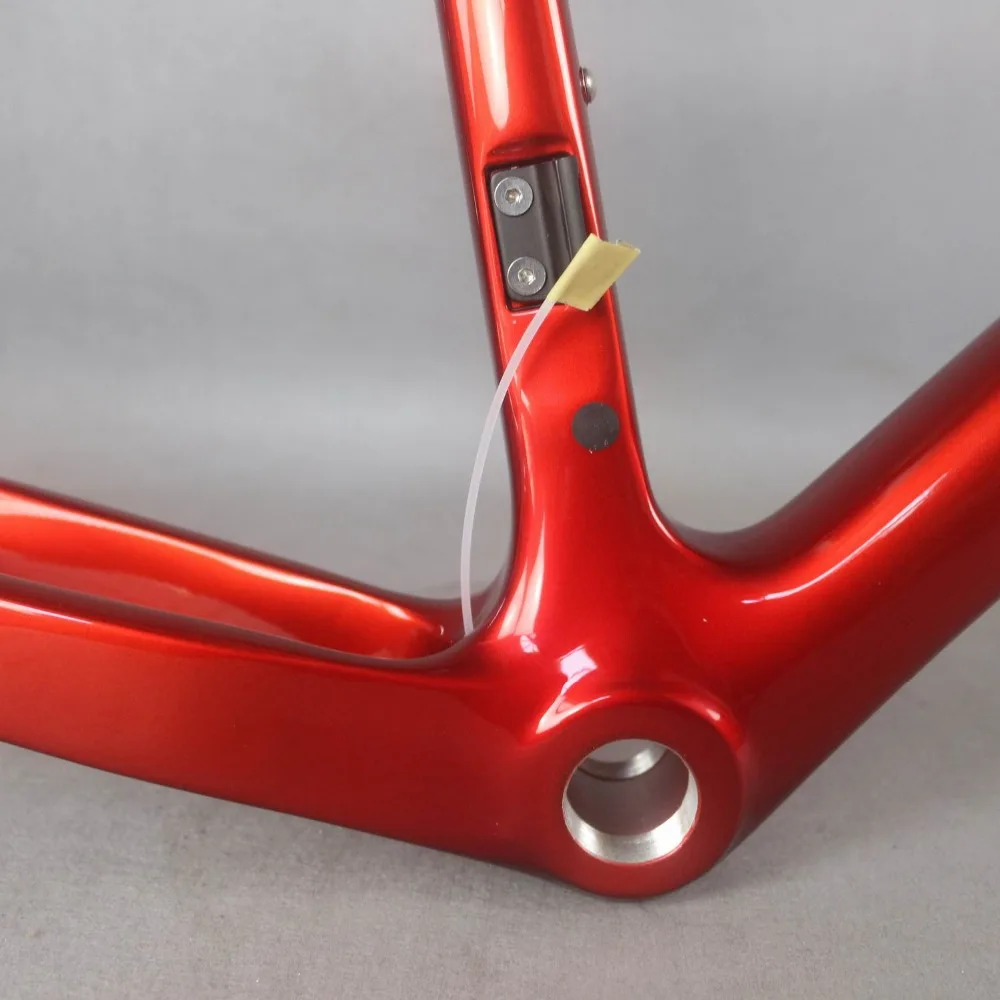

below photo size 54cm BSA bottom bracket .

调整大小 IMG_0960调整大小 IMG_0961调整大小 IMG_0964调整大小 IMG_0966调整大小 IMG_0968调整大小 IMG_0969调整大小 IMG_0970调整大小 IMG_0971调整大小 IMG_0973调整大小 IMG_0974调整大小 IMG_0977调整大小 IMG_0982调整大小 IMG_0983调整大小 IMG_0984



GR029 gravel bikes 6FK028 cyclocross fork 2QQ20170309164625QQ20170309164704

2_022_032_04

HTB18FHtOFXXXXbIapXXq6xXFXXXN

the competitive advantage of product line:


Our products are mainly exported to North America, Western Europe and Northern Europe. We are capable of designing and building our own customized products, and are also able to offer ODM service upon our customers' request.









     Shipping Method


  • we always ship the frame by EMS.it need about 7-25 days can be reach to your customs.
  • Delievery time
  • if frame is in stock,can be shipped in 7 days.if the frame is out of stock,it need about 10-15 days can be ready to ship.
  • Customs Fee
  • we donn't assume any TARIFF for the customs of your country.we usually marked low price for the pacakge value.
  • WARRANTY AND RETURN RULE
  • THE FRAME,WHEELS HAVE 2 YEARS WARRANTY,OTHER BIKE PARTS HAVE 1 YEAR WARRANTY
  • IF THE PROBLEM IS OUR GOODS QUALITY ITSELF PROBLEM OR PROBLEM IS CAUSED DURING SHIPPING,WE REPLACE NEW ONE TO YOU;IF THE PROBLEM IS CAUSED BY YOUR UNREASONABLE ASEMMBLE OR RIDE,WE NOT RESPOSIBLE FOR THE PROBELM!
