2019 FM009 Newest Flat Mount disc carbon road frame road disc brake bike carbon frame axle design disc carbon superlight frame
Category: Road Frame   Publish Time: 2018-11-23 18:28

2019 FM009 Newest Flat Mount disc carbon road frame road disc brake bike carbon frame axle design disc carbon superlight frame
we accept custom paint and open mould , email: info@tantancycling@yeah.net

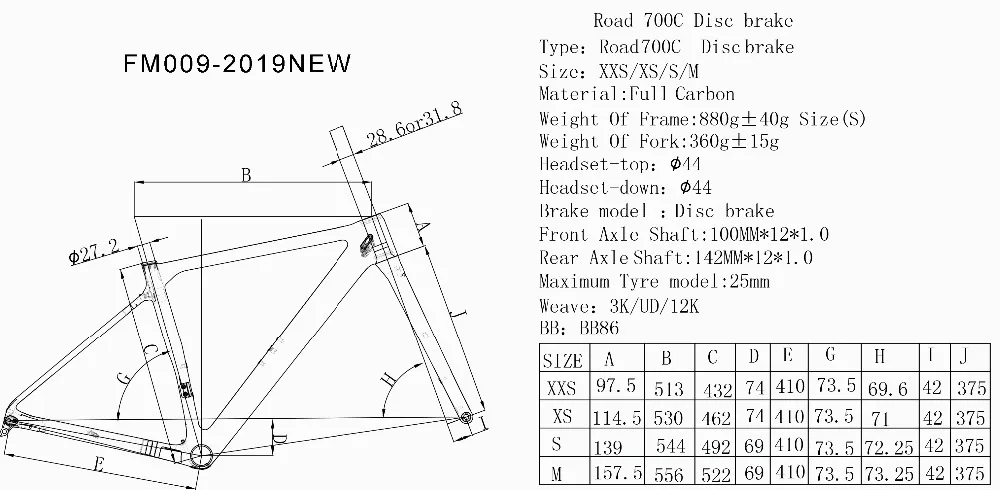

Item  FM009 - 2019 NEW (EPS Technology)
Type  Flat mount disc brake superlight road bike
Size  XXS/XS/S/M
Material  Hight Modulus Toray T1000 Carbon Fiber
Weave  UD Weave
Finished  Customization
Brake Type  Flat Mount Disc Brake
Frame Rear Space  142*12mm Thru-axle
Fork Spacer  100*12mm Thru-axle
Bottom Bracket  BB86
Head Tube  Taper 1-1/8" to 1-1/2"
Seat Tube  27.2mm
Groupset  Di2 and Mechanical Compatible
Max Tire  700*28C
Weight  890g +- 40g (size S)
Cable  All Internal Cable
Warranty  2 Years
Standard  SGS
Origin  Guangdong, China





2






  • Shipping Method
  • we always ship the frame by EMS.it need about 7-25 days can be reach to your customs.
  • Delievery time
  • if frame is in stock,can be shipped in 7 days.if the frame is out of stock,it need about 10-15 days can be ready to ship.
  • Customs Fee
  • we donn't assume any TARIFF for the customs of your country.we usually marked low price for the pacakge value.
  • WARRANTY AND RETURN RULE
  • THE FRAME,WHEELS HAVE 2 YEARS WARRANTY,OTHER BIKE PARTS HAVE 1 YEAR WARRANTY
  • IF THE PROBLEM IS OUR GOODS QUALITY ITSELF PROBLEM OR PROBLEM IS CAUSED DURING SHIPPING,WE REPLACE NEW ONE TO YOU;IF THE PROBLEM IS CAUSED BY YOUR UNREASONABLE ASEMMBLE OR RIDE,WE NOT RESPOSIBLE FOR THE PROBELM!
