New T1000 Carbon Gravel Frame 700C*47C Bike Frame T47 Disc Brake Gravel Bicycle Frameset Road Bike Frame Cyclocross Bike
Category: Customized paint   Publish Time: 2022-11-19 16:16

New T1000 Carbon Gravel Frame 700C*47C Bike Frame T47 Disc Brake Gravel Bicycle Frameset Road Bike Frame Cyclocross Bike
E-mail : info@tantancycling.com

This frame can be all inner cable . external cable . DI2 .  ( the parts all include ) received frame . you can choose the parts assembly to the frame .

Price include : frame+fork+seatpost+headset+handlebar+spacers


The handles are available in the following sizes. Please note the size of the bending handles when ordering.







GR047

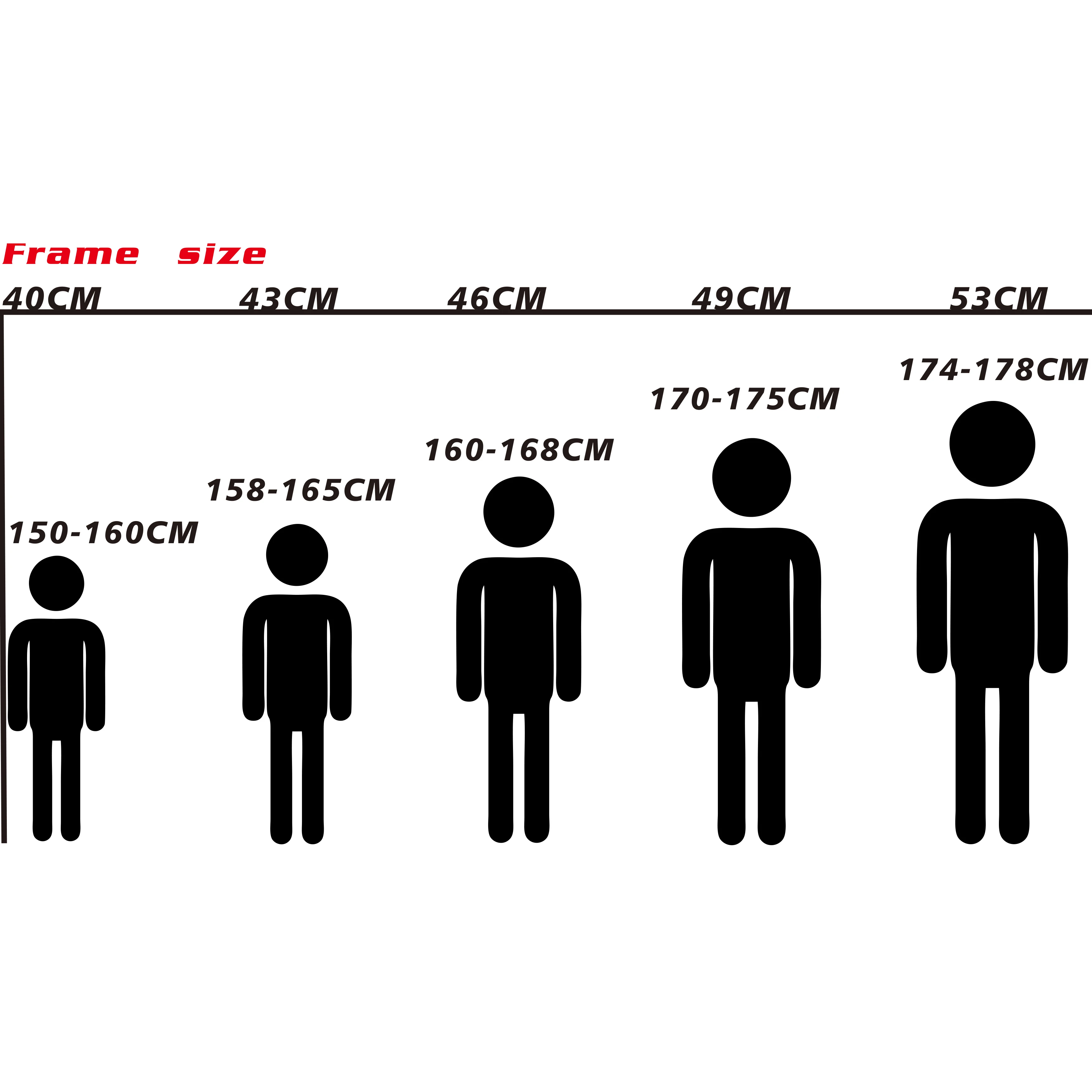

Size: xS/S/M/L/XL

Bracket:T47

Weave:UD-Raw/Matte/Glossy/Black Matte/Black Glossy

Finished:To order-Customized paint&Logo decal

Material:Hight Modulus Toray t1000 Carbon Fiber

Head Tube: 1-1/2” to 1-1/2”

Tapered Integrated Seat Tube: 27.2mm Diameter Seatpost

Frame Rear Space: 142*12mm Thru-axle

Fork spacer : 100*12mm Thru-axle

Groupset: Di2 and Mechanical Compatible Brake

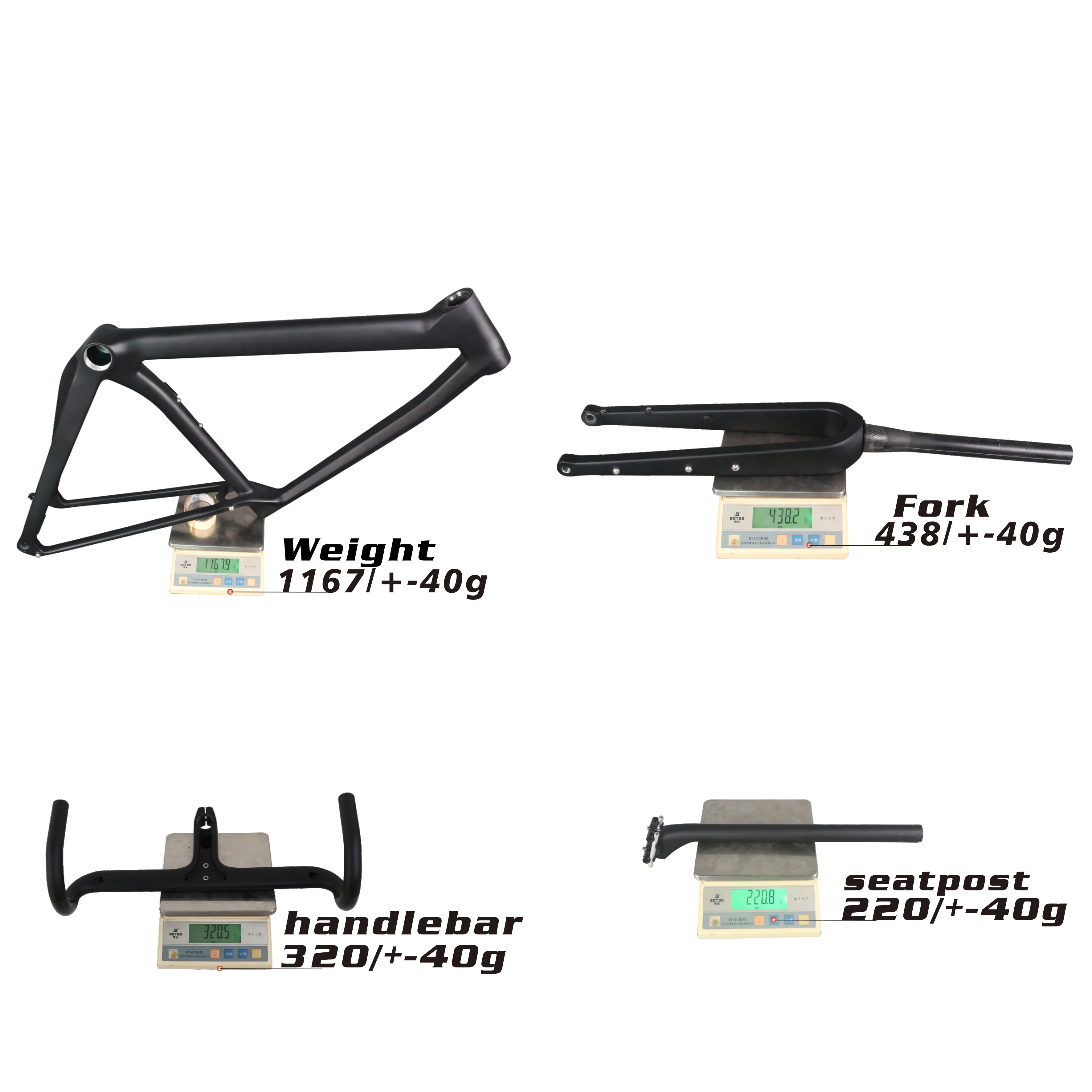

Weight: Frame 1167+/-40g

Fork 480+/-15g

Disc Rotor: Front and Rear 140mm (if 160mm need add adapter )

Cable Type: Internal cable

Max Tire: 700X47C

650B wheels : 27.5*2.1"
