Item:GR029

Size:49cm 52cm 54cm 56cm 58cm

Bottom Bracket:BSA

Weave:UD-Raw/Matte/Glossy/Black Matte/Black Glossy

Finished:To order-Customized paint&Logo decal

Material:Hight Modulus Toray t700 Carbon Fiber

Head Tube:1-1/8” to 1-1/2” Tapered Integrated

Seat Tube:27.2mm Diameter Seatpost

Frame Rear Space:142*12mm Thru-axle

Fork spacer :100*15mm or  100*12mm thru axle

Groupset:Di2 and Mechanical Compatible

Brake Type:Flat Mount Gravel Disc Brake

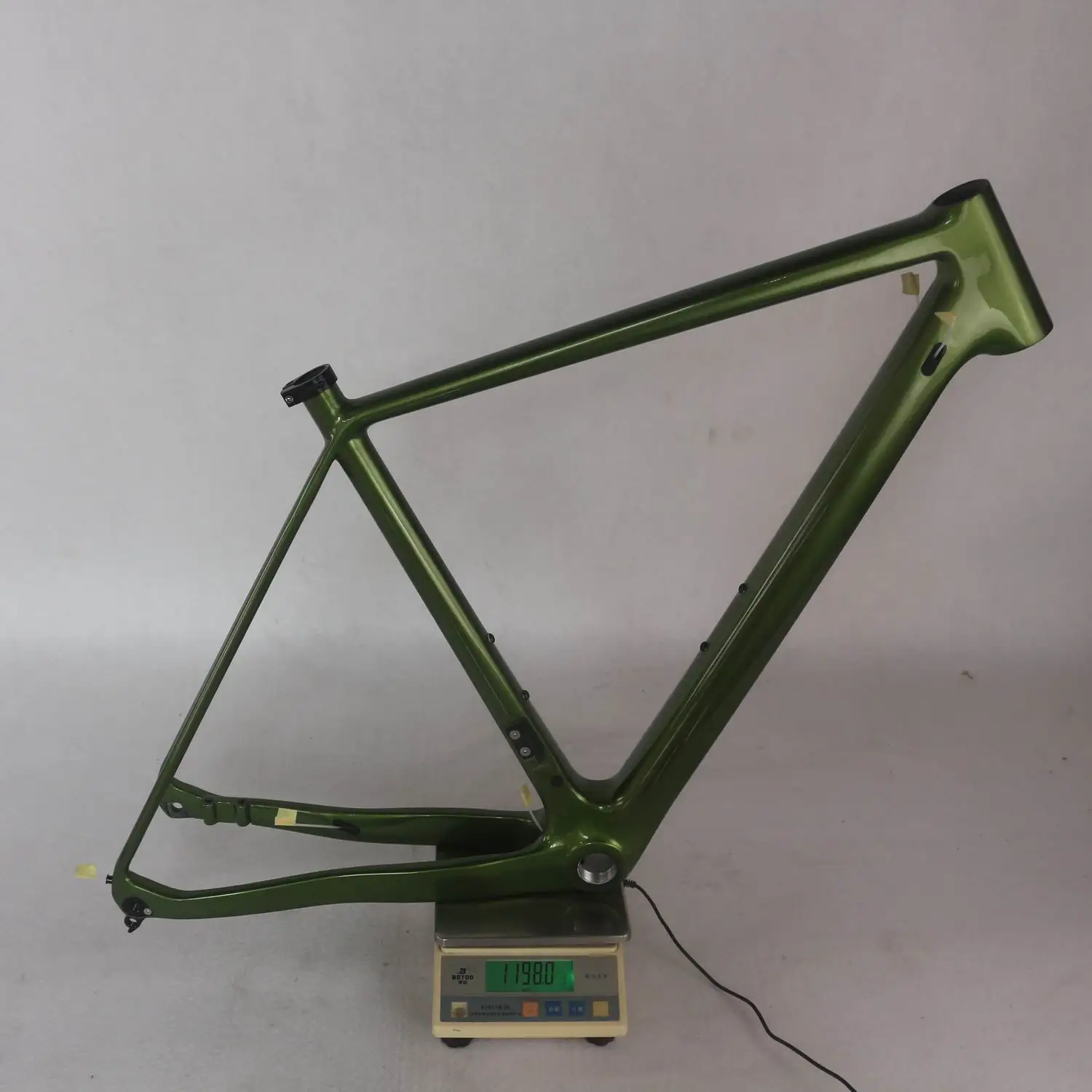

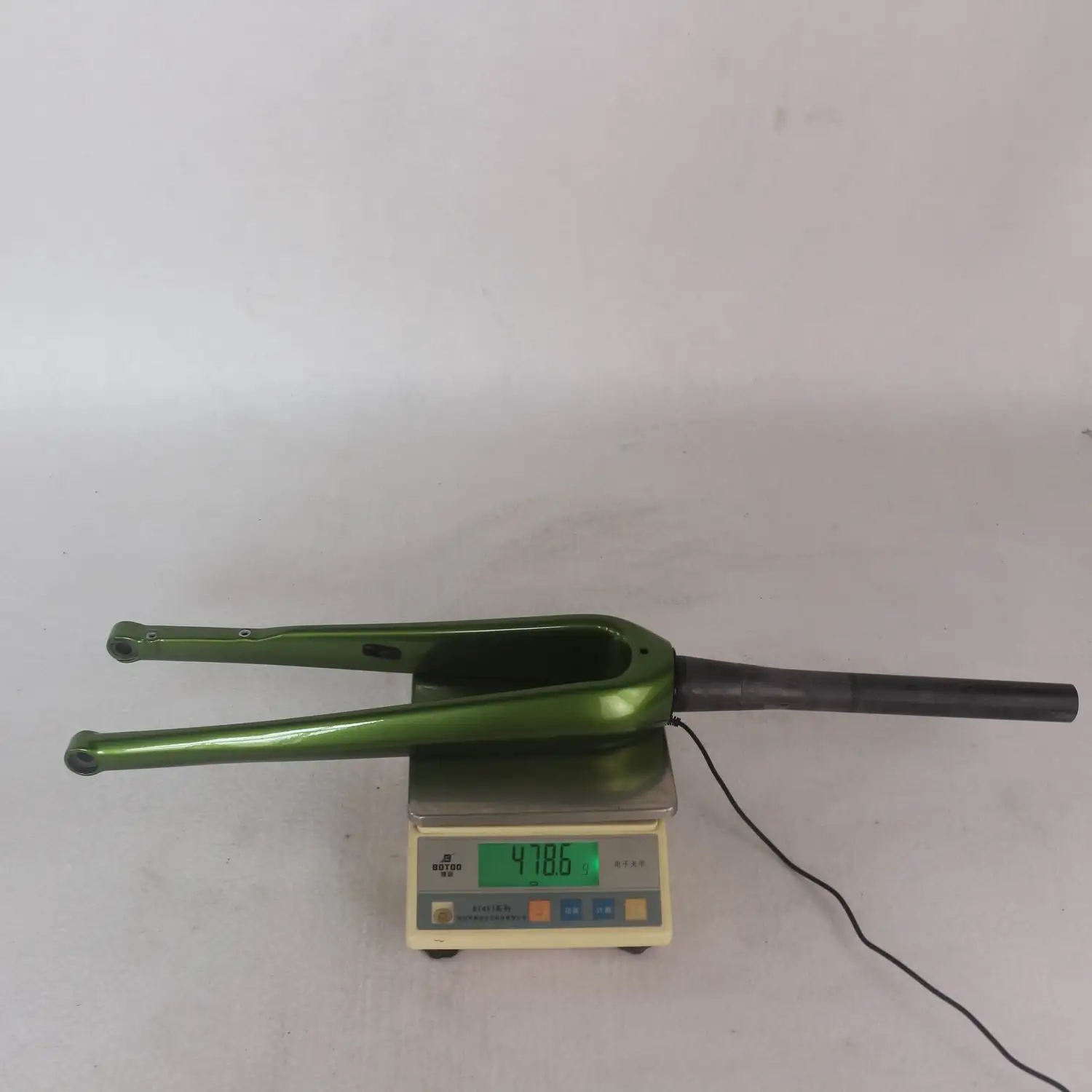

Weight:Frame 985+/-15g (52cm), Fork 399+/-15g

Disc Rotor:Front and Rear 140mm, if 160mm need add adaptor

Chain Stay:425mm

Fork Rake:45mm

Cable Type:Internal cable

Max Tire:700X42C

Warranty: 2 years

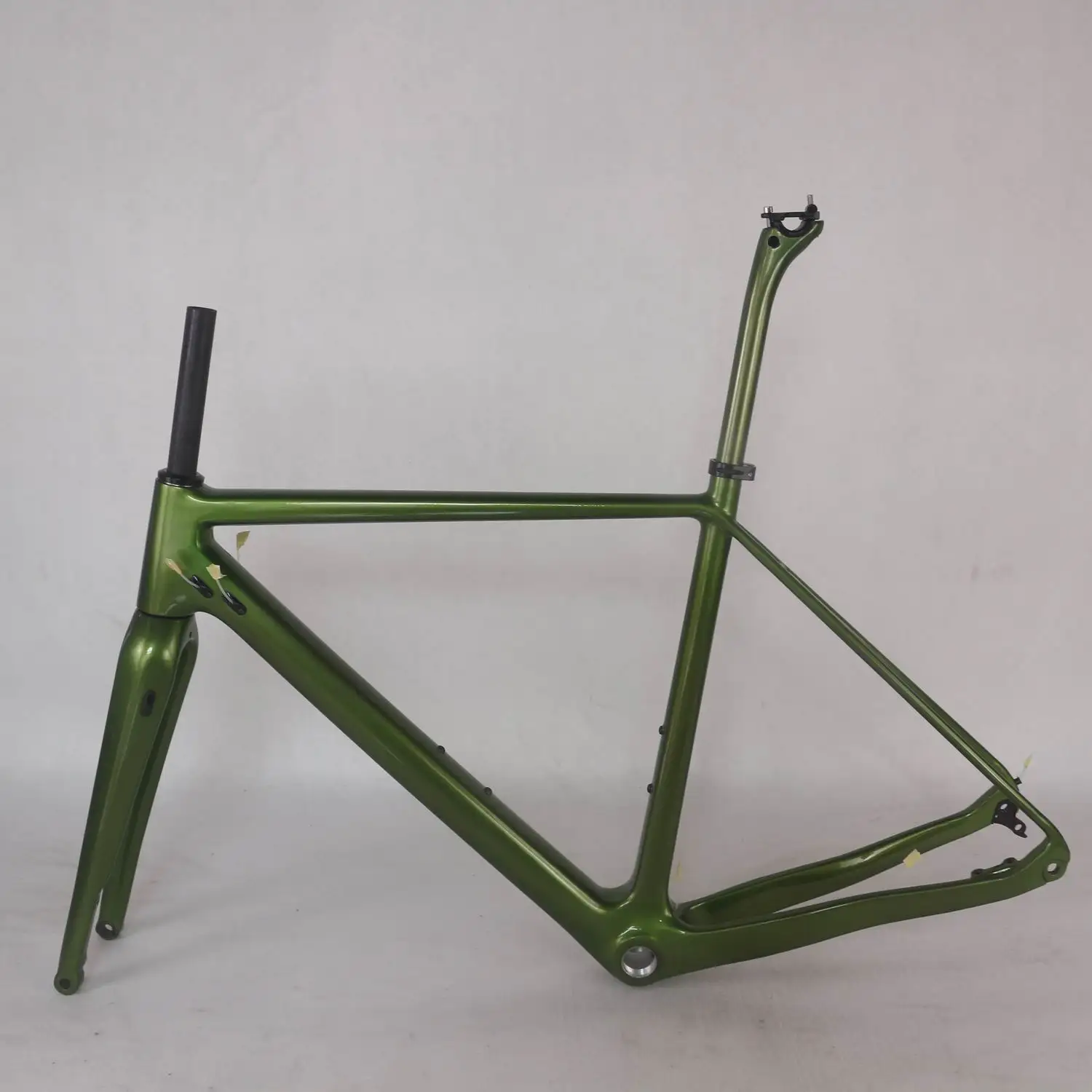

below photo size 52cm BSA bottom bracket .  YS3203

Shipping Method

• we always ship the frame by EMS.it need about 7-25 days can be reach to your customs.

• Delievery time

• if frame is in stock,can be shipped in 7 days.if the frame is out of stock,it need about 10-15 days can be ready to ship.

• Customs Fee

• we donn't assume any TARIFF for the customs of your country.we usually marked low price for the pacakge value.

• WARRANTY AND RETURNRULE

• THE FRAME,WHEELS HAVE 2 YEARS WARRANTY,OTHER BIKE PARTS HAVE 1 YEAR WARRANTY

• IF THE PROBLEM IS OUR GOODS QUALITY ITSELF PROBLEM OR PROBLEM IS CAUSED DURING SHIPPING,WE REPLACE NEW ONE TO YOU;IF THE PROBLEM IS CAUSED BY YOUR UNREASONABLE ASEMMBLE OR RIDE,WE NOT RESPOSIBLE FOR THE PROBELM!
